Set Up the Algolia Cartridge

The Algolia Link Cartridge for Salesforce Commerce Cloud B2C is currently in beta.

Installation

Using the CLI

  1. Download the cartridge source from the Partner Marketplace.

  2. Unzip the directory.

  3. Make sure you’re running Node 10, then install the dependencies from the unzipped directory.

    1
    2

     cd /path/to/unzipped/folder
     npm install

  4. Create a dw.json file in the directory where you just installed the NPM dependencies, and add the following content:

    1
    2
    3
    4
    5
    6

    {
      "hostname": "...",
      "username": "...",
      "password": "...",
      "code-version": "..."
    }

    • hostname is the hostname you use to access your sandbox, for example "zzgk-001.sandbox.us01.dx.commercecloud.salesforce.com",
    • username and password are your account manager email and password,
    • code-version is the name of the active code version in Administration → Code Deployement. For example, "SFRA_AP_05_15_2020".
  5. Upload the cartridges by executing the following command.

    1

    npm run uploadCartridges

  6. Verify that the Algolia cartridges are correctly uploaded by going to Administration → Development Setup → Cartridges.

Using Salesforce UX Studo

  1. Download the cartridge source from the Partner Marketplace.

  2. Establish a new digital server connection with your SFCC instance.

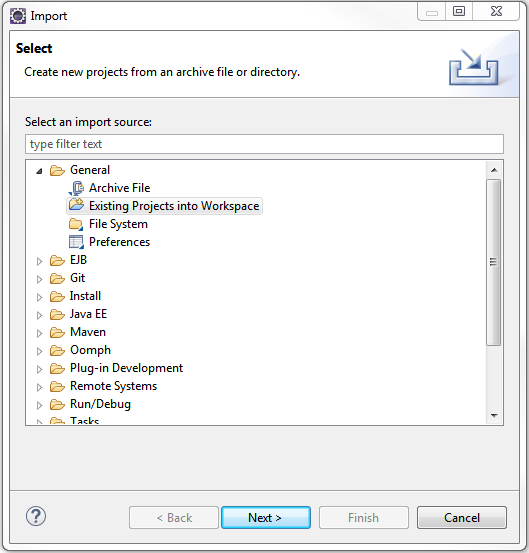

  3. Import the cartridges to a workspace in Salesforce UX Studio. Importing Algolia Cartridge in Salesforce UX studio Workspace

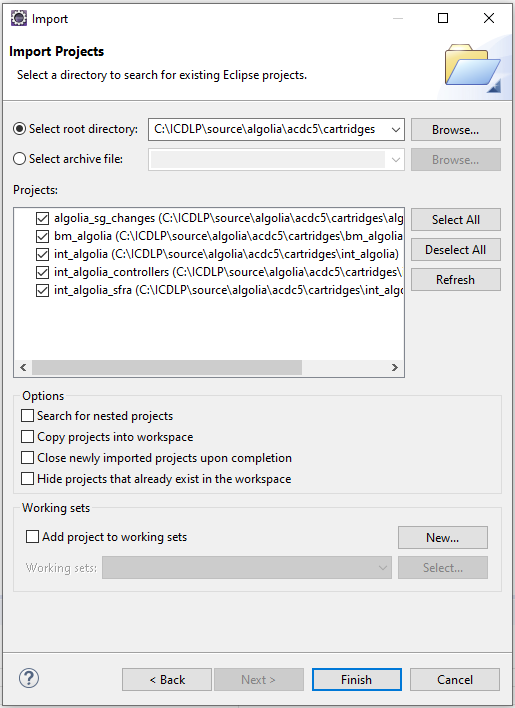

  4. Add the cartridges to Project Reference. Adding Algolia Cartridge to Project Reference

  5. Wait until Salesforce UX Studio completes the workspace build and uploads the source codes to your SFCC instance.

Enable the cartridges on your site

Algolia provides the following cartridges to integrate with your SFCC storefronts:

int_algolia Handles the import of your product information from SFCC to Algolia
bm_algolia Allows you to monitor and configure Algolia indexing from your Business Manager
int_algolia_controllers algolia_sg_changes Allows you to implement Algolia InstantSearch on your SiteGenesis SFCC storefront
int_algolia_sfra Allows you to implement Algolia InstantSearch on your SFRA SFCC storefront
  1. Go to Administration → Sites → Manage Sites.

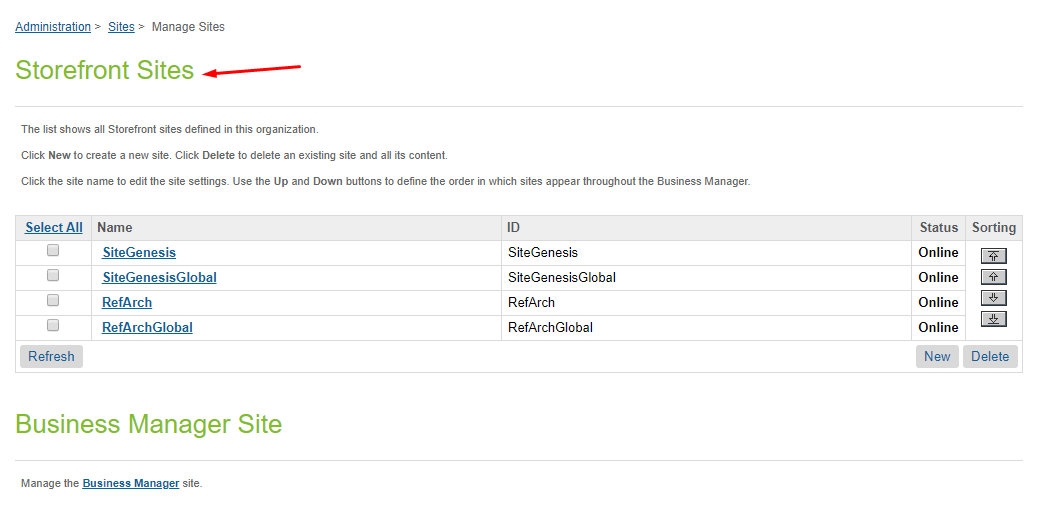

    Select your desired site from the Storefront Site list: Storefront List

  2. Go to the Settings tab. The site cartridges you will need to assign depend on the type of architecture of your site:

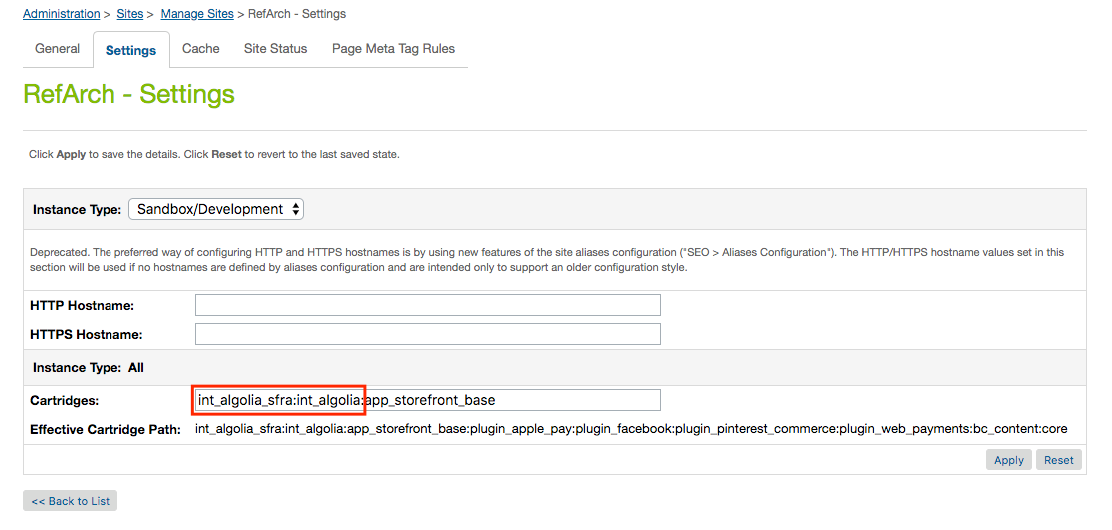

    • If your site is based on SFRA, add int_algolia_sfra:int_algolia at the beginning of your cartridge path. Add the Algolia cartridge to the SFRA site installation cartridge path
    • If your site is based on SiteGenesis,
      (a) add algolia_sg_changes:int_algolia_controllers at the beginning of your cartridge path, and
      (b) add int_algolia at the end of your cartridge path.
    • If your site is based on a headless architecture, add int_algolia at the beginning of your cartridge path.

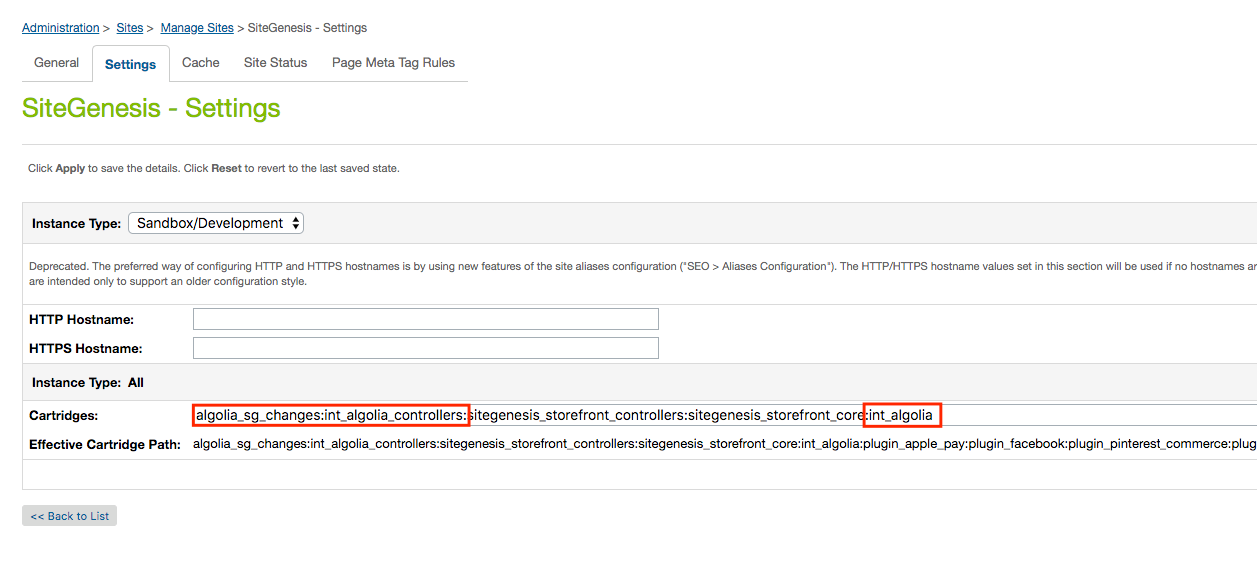

    Add the Algolia cartridge to the SiteGenesis site  installation cartridge path

Next, add the cartridge to the Business Manager:

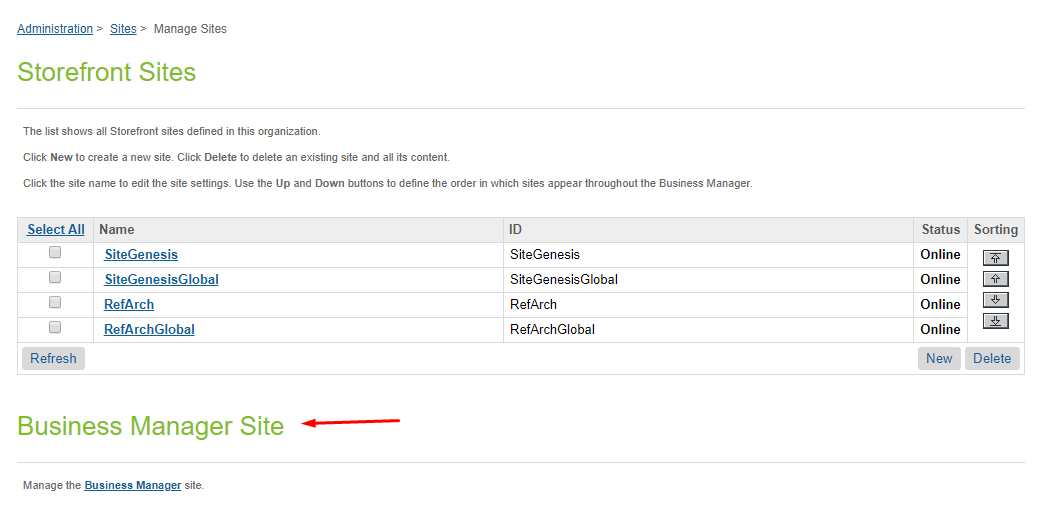

  1. Go back to Administration → Sites → Manage Sites and click on Manage the Business Manager Site.
    Business Manager

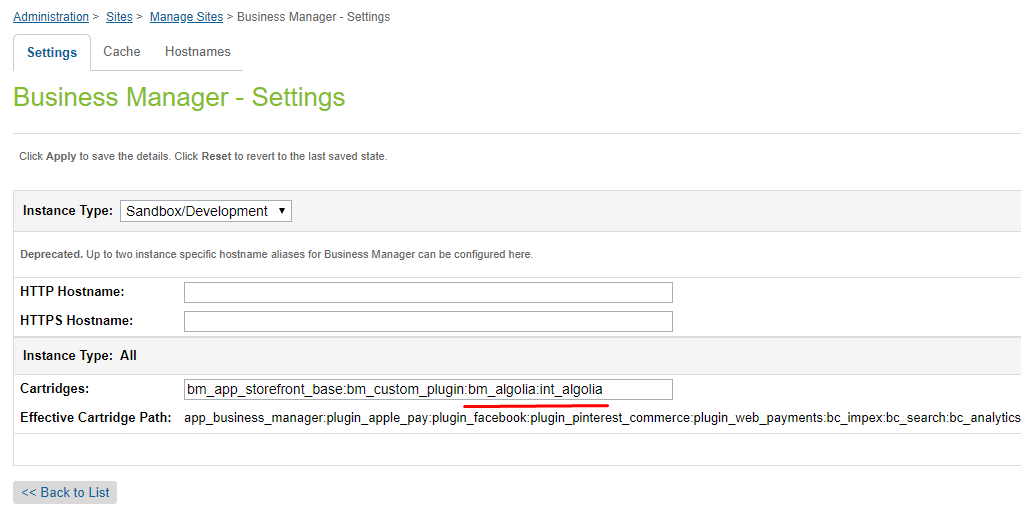

  2. Go to the Settings tab, and add bm_algolia:int_algolia at the end of your cartridge path. Add the Algolia cartridge to the Business Manager installation cartridge path

  3. Wait until Salesforce UX Studio completes the workspace build and uploads the source code to your sandbox.

Import metadata

  1. Go to Administration → Site Development → Site Import & Export. and upload the algolia.zip archive from the metadata folder.

  2. To import algolia.zip, select the radio button next to it and click the import button. Import algolia.zip metadata to your instance

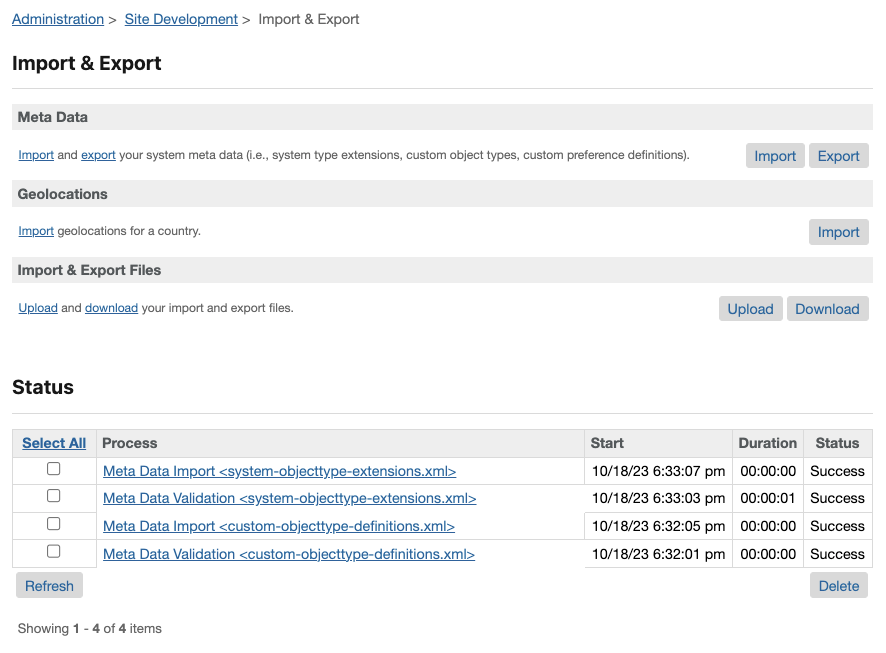

  3. Confirm the import is successful. Import algolia.zip metadata is successful

Set Algolia custom preferences for your site

  1. Go to Merchant Tools → Site Preferences → Custom Preferences. Configure Algolia Custom Preferences Group

  2. Select Algolia in Custom Site Preferences Groups. Configure Algolia Custom Preferences Group

  3. Set Enable Algolia to Yes.

  4. Fill in your Application ID, Search API Key and Admin API Key. You can find these in the Algolia Dashboard

  5. Set the hostname to https://sfcc-stream.algolia.com.

  6. Set up your custom fields (or attributes) from our list of attributes. We recommend starting with the following attributes: name,short_description, long_description, price, brand, color, size and image_groups.

  7. Set your OCAPI credentials:

    • OCAPI client ID: aaaaaaaaaaaaaaaaaaaaaaaaaaaaaa,
    • OCAPI client password: aaaaaaaaaaaaaaaaaaaaaaaaaaaaaa.

    These are placeholder credentials. You need to provide them for the Algolia integration to work, but we don’t currently use them. You can use whichever placeholder you need.

Add service credentials

  1. Go to Administration → Operations → Services → Service Credentials → algolia.http.api.cred
  2. In the URL field, add https://sfcc-stream.algolia.com. You can leave the User and Password fields empty.

Configure Algolia Custom Preferences Group

To keep your logs from overflowing, only turn on communication logs when you really need them.

Enable Algolia in the Business Manager

  1. Go to Administration → Organization → Roles & Permissions

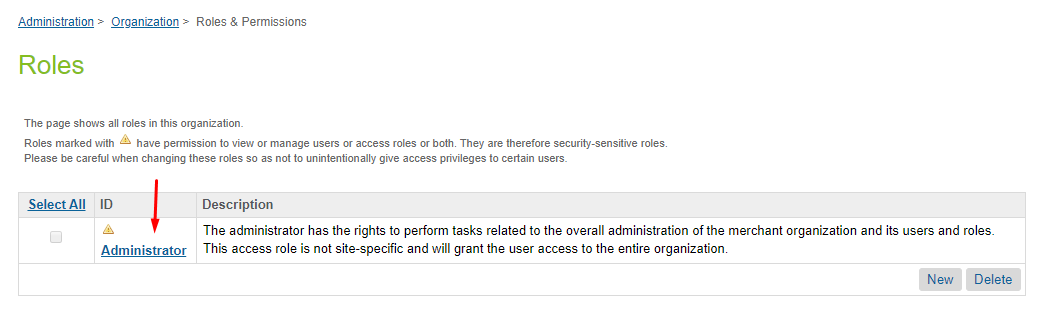

  2. Select the Role for which you’d like to enable access (e.g. Administrator) Configure Algolia Service roles

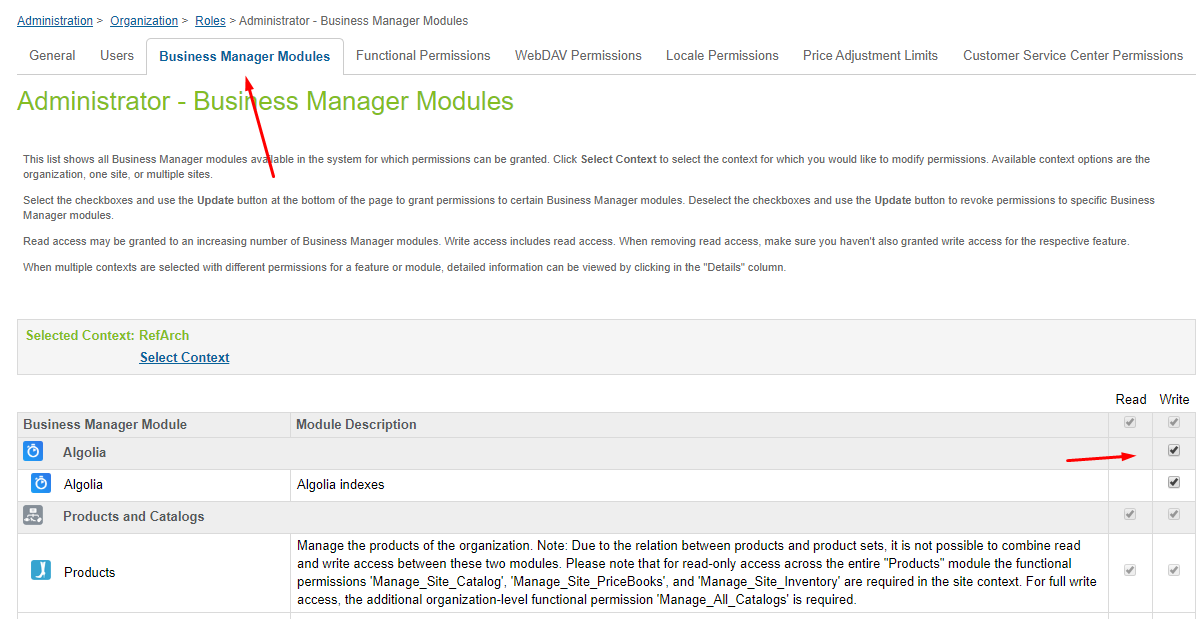

  3. Go to the Business Manager Modules tab. Configure Algolia in the Business Manager

  4. Select the checkbox next to Algolia and press Update at the end of the settings page.

Update your templates

This section is only relevant for sites using SiteGenesis or SFRA. If you are using a headless architecture, refer to our dedicated guide on using a headless architecture in SFCC with Algolia.

  1. In app_storefront_base/cartridge/templates/default/common/htmlHead.isml, add the following code on line 32:
1
<isinclude template="algolia/headerScripts" />
  1. In app_storefront_base/cartridge/templates/default/components/header/search.isml, add the following code at the start of the file, and move existing the code to an <iselse> section:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
<isset name="algoliaData" value="${require('*/cartridge/scripts/algolia/lib/algoliaData')}" scope="page" />
<isif condition="${algoliaData.getPreference('Enable')}">
    <div class="site-search">
        <div id="suggestions-wrapper"
            data-category="${pdict.cgid}"
            data-category-display-name-path="${pdict.categoryDisplayNamePath}"
            data-category-display-name-path-separator="${pdict.categoryDisplayNamePathSeparator}"
            data-q="${pdict.q}"
            data-search-page-root="${URLUtils.http('Search-Show')}"></div>

        <input
            type="search"
            id="aa-search-input"
            class="aa-input-search form-control"
            placeholder="${Resource.msg('label.header.searchwatermark', 'common', null)}"
            name="search"
            autocomplete="off" />

    </div>
<iselse/>
   ... existing code ...
</isif>

  1. In app_storefront_base/cartridge/templates/default/search/searchResult.isml, search for the following line of code:
1
<isinclude template="search/searchResultsNoDecorator" />

and replace it with the following code:

1
2
3
4
5
<isif condition="${pdict.algoliaEnable}">
    <isinclude template="algolia/search/searchResultsNoDecorator" />
<iselse/>
    <isinclude template="search/searchResultsNoDecorator" />
</isif>
