Front End Issues

Now that we covered all the different types of back-end issues related to the indexing, let’s have a look at the most common issues experienced on the front end.

You are seeing unexpected results

It is possible to see unexpected results while you’re fetching your products. The best way to understand where it’s coming from is to compare them to the results you get with the same search in your Algolia dashboard: go to Indices then search for your default product index (by default : magento_default_products).

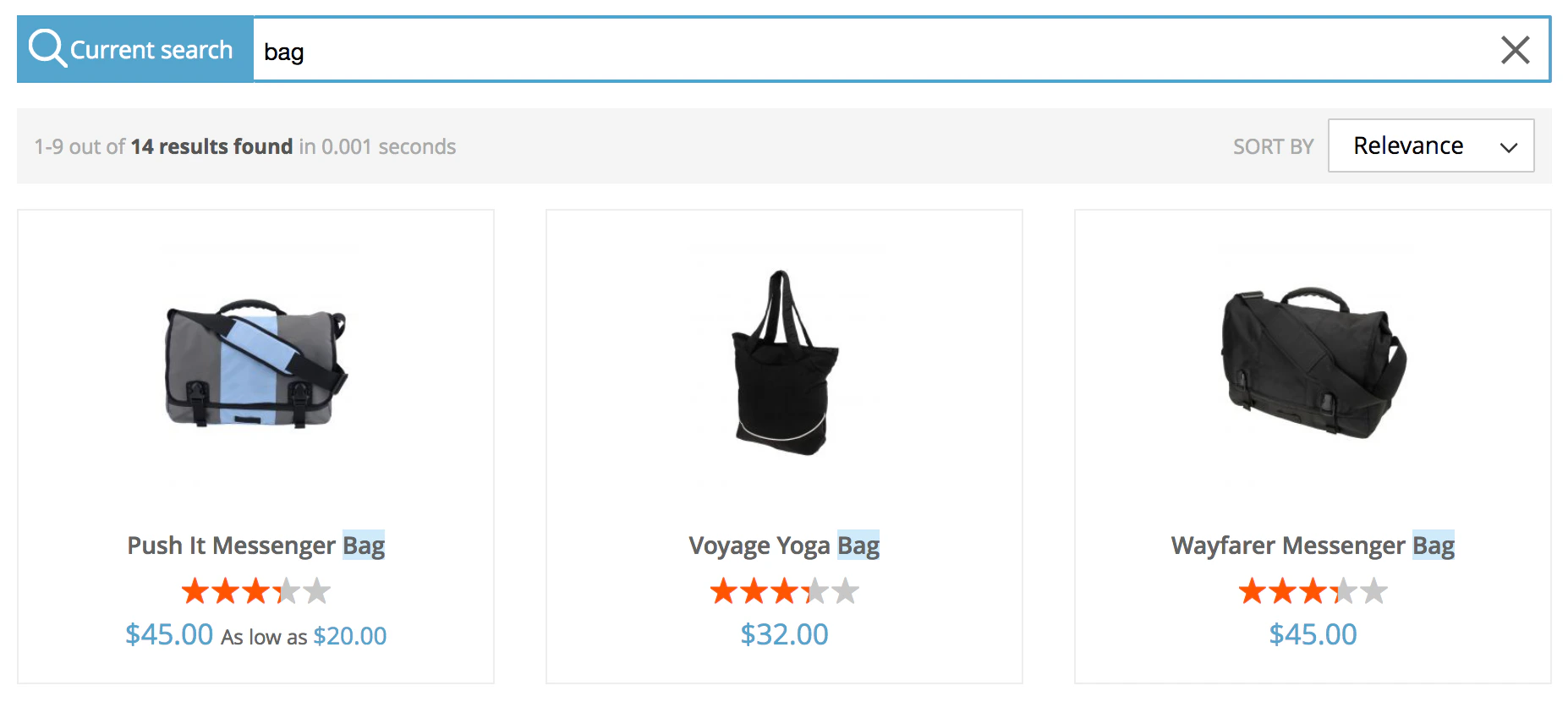

Search on the front end

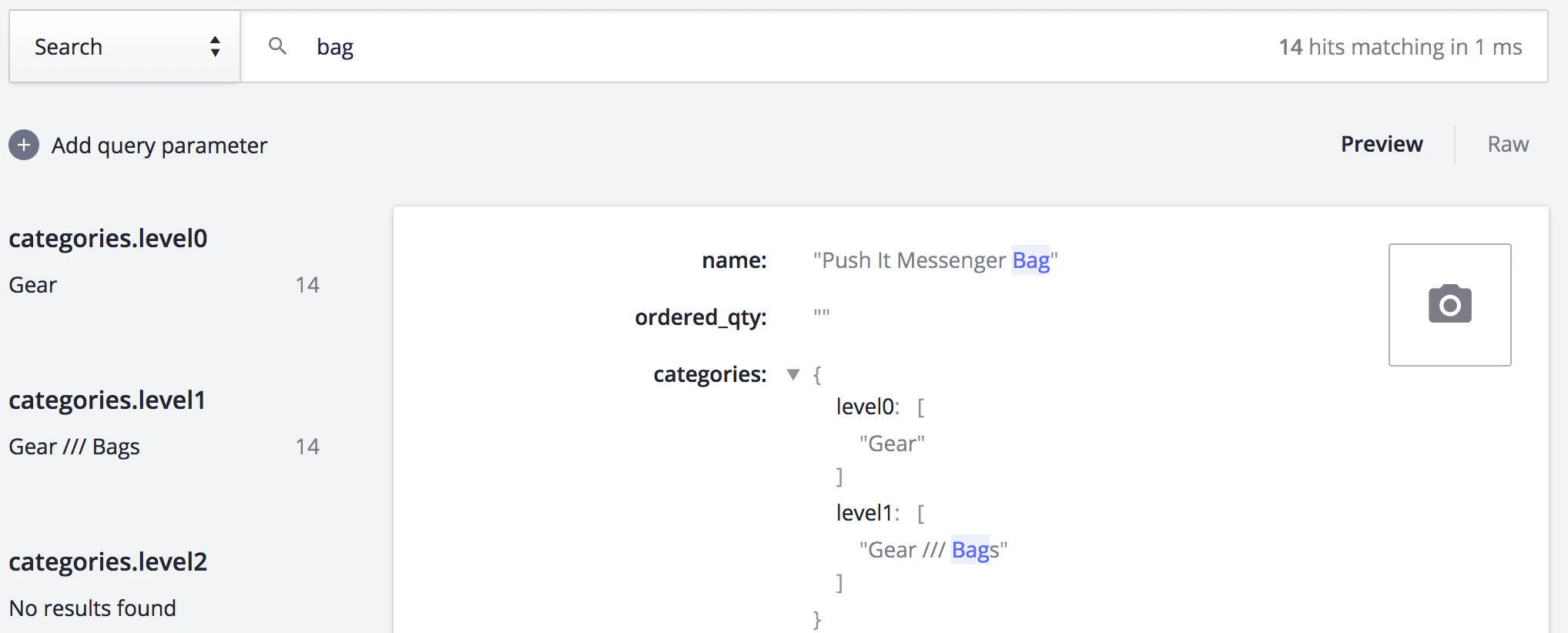

Search on the dashboard

If you see the same behavior on the dashboard and on the front end, and it looks unexpected to you, this probably means that there’s an issue on how you configured your index. You can have a look at the online documentation about this topic.

If you see differences between your front end and your dashboard, you should: Check the attributes “visibility_search” and “visibility_catalog” of the records. If they are set to 0, they won’t appear in related pages on the front end.

Visibility attributes

Have a look at the “Query Rules” tab of the index. The results might be affected by facet query rules or by category merchandising.

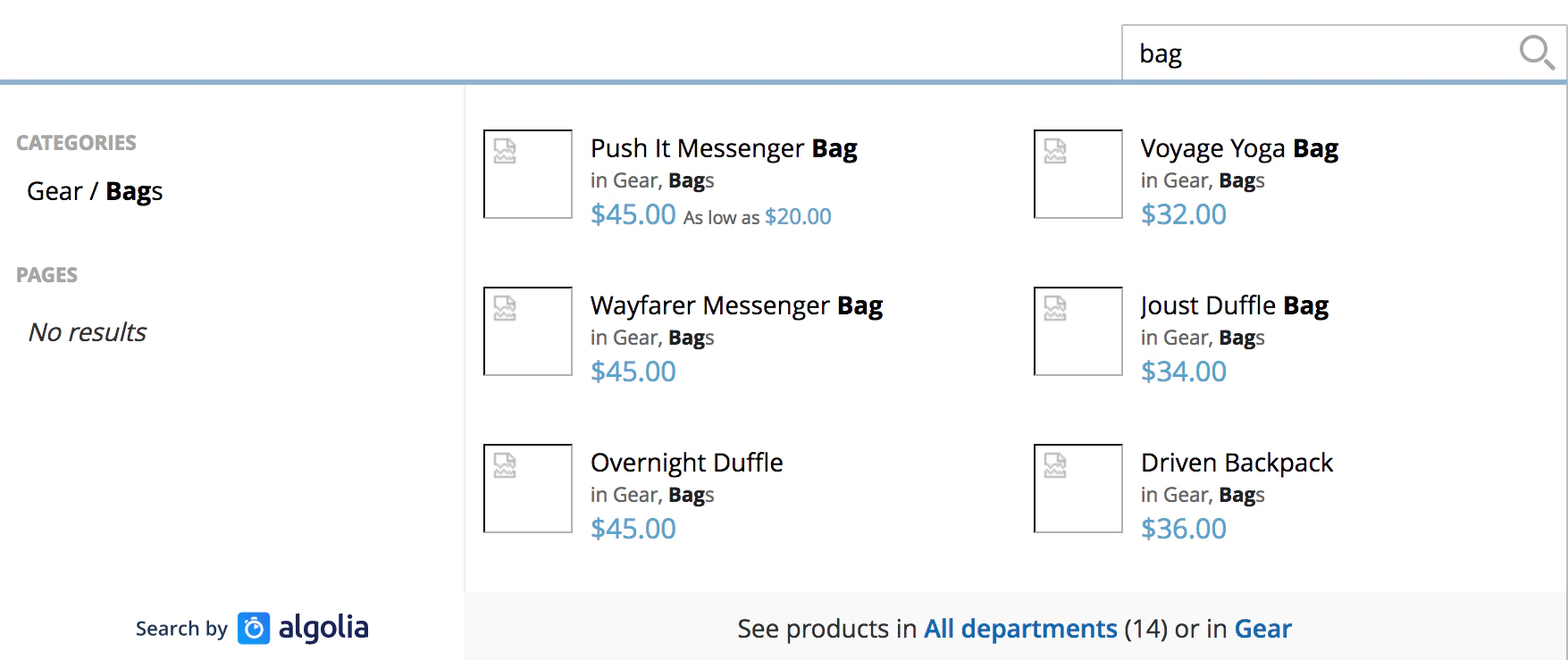

There are no images in your results

It can happen that the product images don’t exist anymore. The Algolia extension is relying on Magento’s cache to use the resized images, as they only exist in the pub/media/catalog/product/cache directory. This directory is emptied each time you clean the image cache of Magento. It means that if you do so, the indexed images won’t exist anymore and you have to reindex your product to update the Algolia records with the new urls. If all your images suddenly disappear on your front end, that’s probably what happened.

Broken images

Use your favorite browser to help you

Some of the web browsers, like Mozilla Firefox or Google Chrome, have very useful tools to help you investigate the issues on the front end. As the extension loads files and templates that are the same in every Magento 2 website, first thing you can do is to check is everything is fine in the source code of your web pages.

Checking the source code

To display the source code, press Ctrl + U (or Cmd + U on MacOS) .

You can:

  • If you didn’t turn on the JavaScript merging in the Magento configuration, you can check if the 3 JavaScript embedded by the extension are loaded in the <head> div (common.js, instantsearch.js and autocomplete.js). These 3 files are mandatory for the search to work.
  • Search if the variable window.algoliaConfig is defined just below. This variable fetches all the configuration related to Algolia coming from the Magento back-office.
  • Check if the native search input on the header has been replaced by the Algolia search input. For example, search for name=”q” in the code source, the input should have now algolia-search-input in its class attribute.
  • In the products listing pages powered by InstantSearch.js, search for the DOM selector defined in the back-office in Stores > Algolia Search > Instant Search Results Page > DOM selector (by default, it’s .columns). This selector has to be on the page for the results to be injected in the page.

DOM selector

Keep in mind that all these file injections and template modifications use the standard Magento layout system.

You can have a look at the view/front-end/layout/algolia_search_handle.xml file to see how it works.

Note that this layout update has been developed to work with the native Magento Luma Theme, so it’s possible that if you made some customization on your front end, you may have to override the Magento layout update as well.

Your browser offers other useful tools situated in the developer tools. To open it, press F12 (or fn + F12 on MacOS).

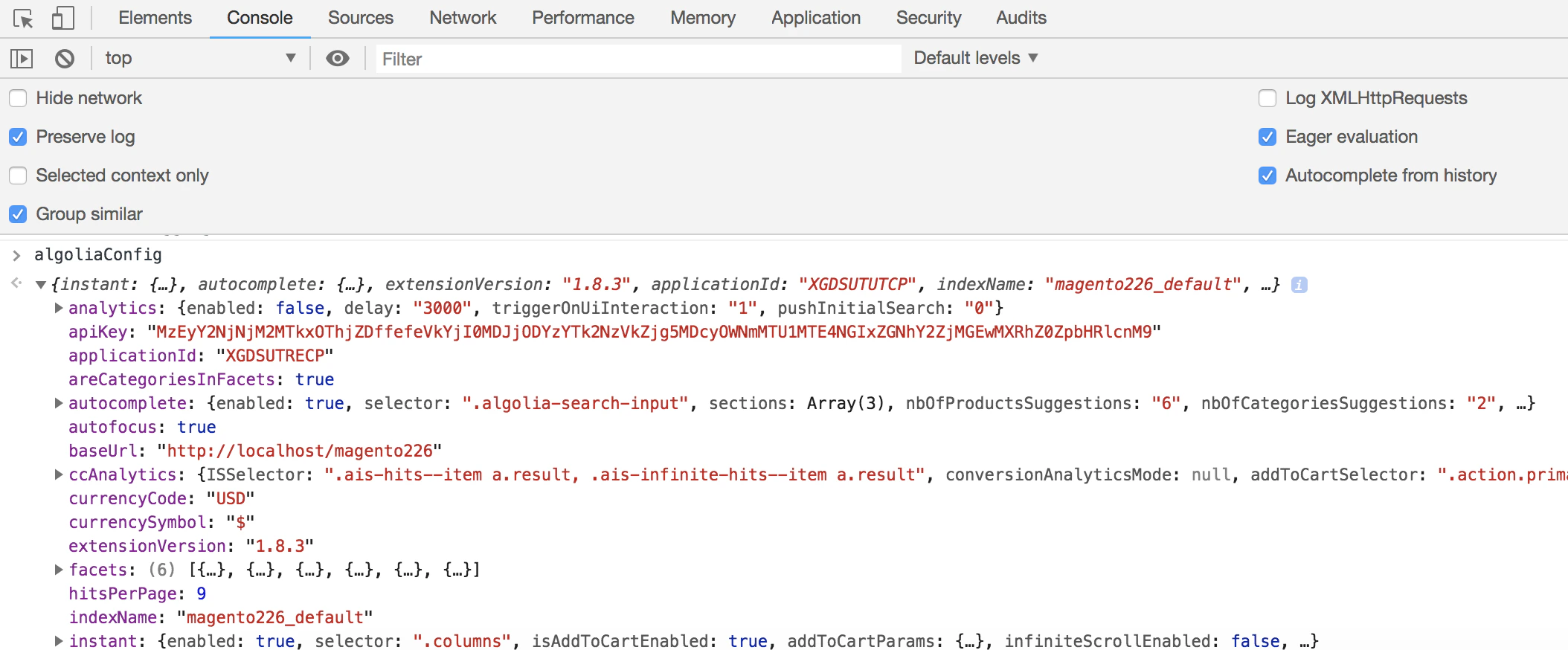

Using the console

In the console tab, you can type “algoliaConfig” then press Enter, you will see all the configuration contained in the object (coming from your Magento configuration). It is useful to check if your front end is up to date with the latest modifications you made in the back office and perhaps remind you to clear the cache.

Console tab

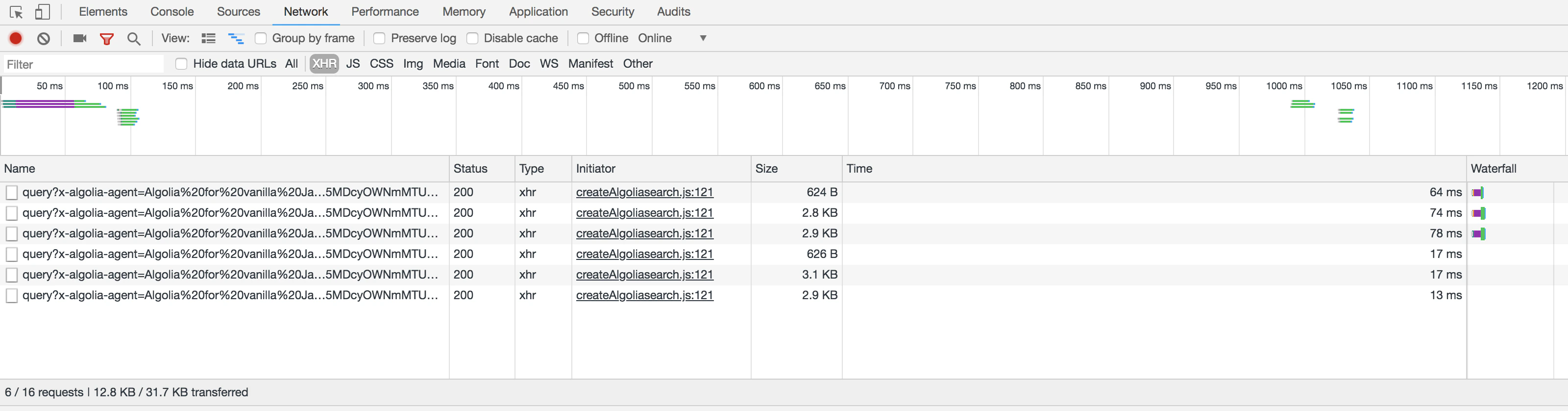

Checking the calls made

In the network tab, you can filter the results with the “XHR” sub-tab. Then you can monitor each call to Algolia’s servers when you type your search. By clicking on a call, you will get all the information relative to the request and the response, which can be very useful to verify if the search is working as it should.

Network tab

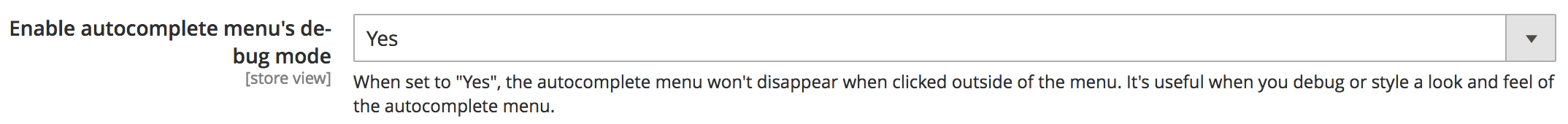

Investigating the autocomplete HTML code

If you want to investigate the HTML code of the autocomplete menu with the developer tools, you can activate the debug mode in Stores > Algolia Search > Autocomplete Menu > Enable autocomplete menu’s debug mode. If you do so, the dropdown won’t disappear anymore when you click outside the menu, which is very useful to have a closer look at the HTML generated by the extension.

Autocomplete debug
